Our Machine

Machine

OUTLINE OF MICS EQUIPMENT

Type Qty Size Range Monthly Capasity
Slitter 1 Thickness 0.30 - 3.20mm 3500
1 Thickness 0.50 - 6.00mm 4000
Cut to Length 1 Thickness 0.30 - 3.20mm 1500
1 Thickness 0.40 - 3.20mm 2000
Down Shearing 1 Thickness 0.30 - 6.00mm 200
1 Thickness 0.30 - 4.00mm 250
Total Capasity 11450

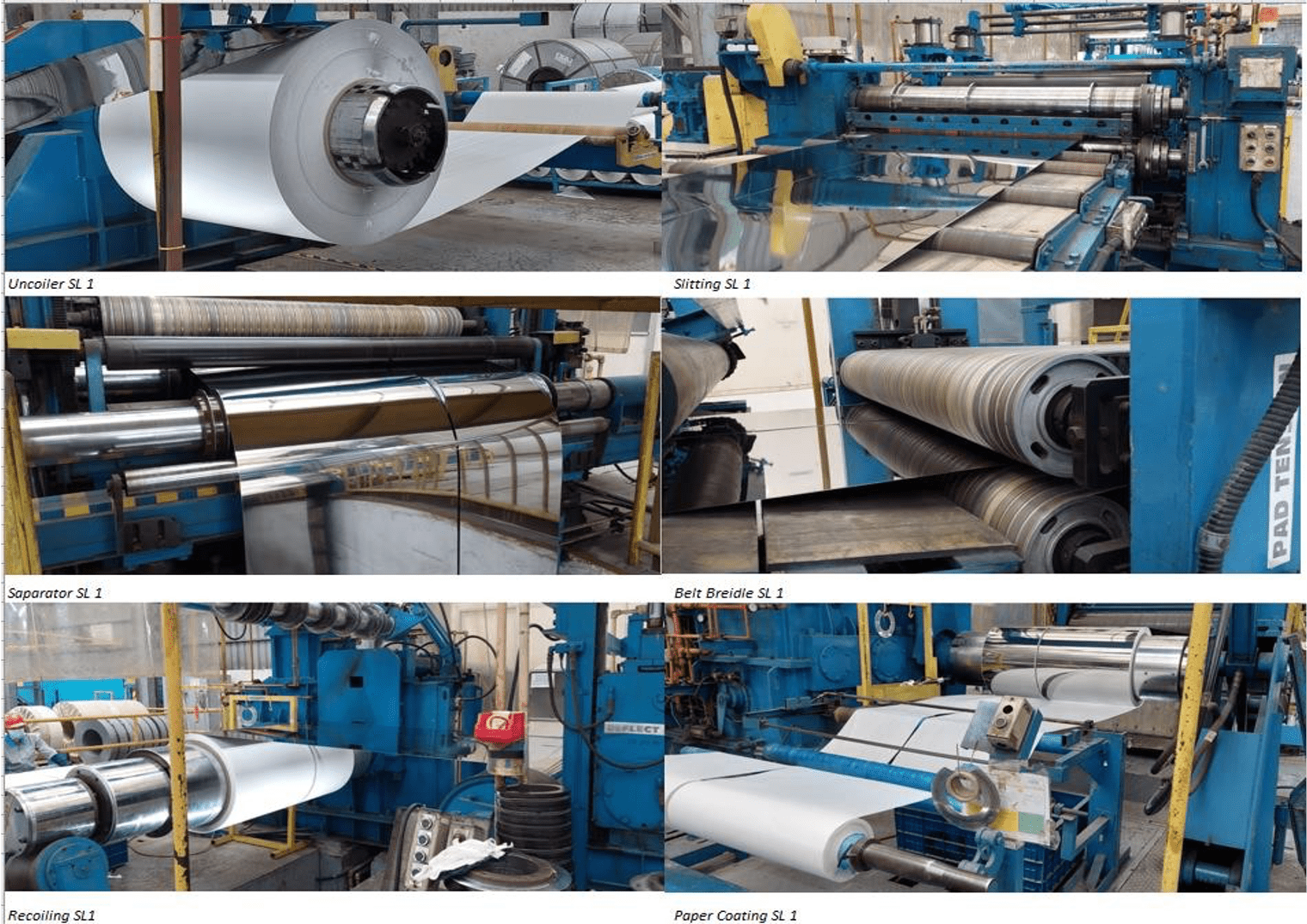

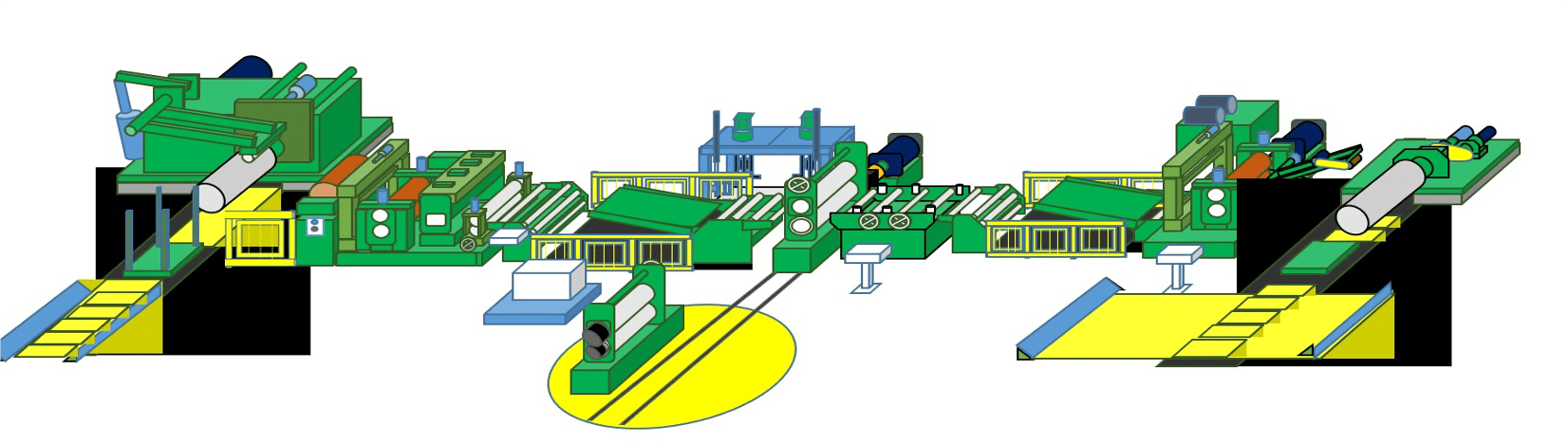

SLITTING 1 MACHINE

Slitting 1 Machine
SLITTING 1 MACHINE
MACHINE Type of machine SL1
Manufactur KOWA (Japan)
Start Operation Jan-97
Type Of Material Stainless steel, aluminium, galvanis, silicon
Tensile Strength Max. 400 N/mm2
Line Speed 200 M/min
MOTHER COIL Thickness mm 0.30 - 3.20
Width mm 400 - 1550
Length mm Coil
Weight MT 15 (Max)
ID mm 508, 610 (rubber sleeve)
OD mm 600 - 1800
PRODUCT Thickness mm 0.30 - 3.20
Width mm 30 - 1550
Length mm Coil
Weight MT 15 (Max)
ID mm 508
OD mm 1800
Slitting 1 Machine

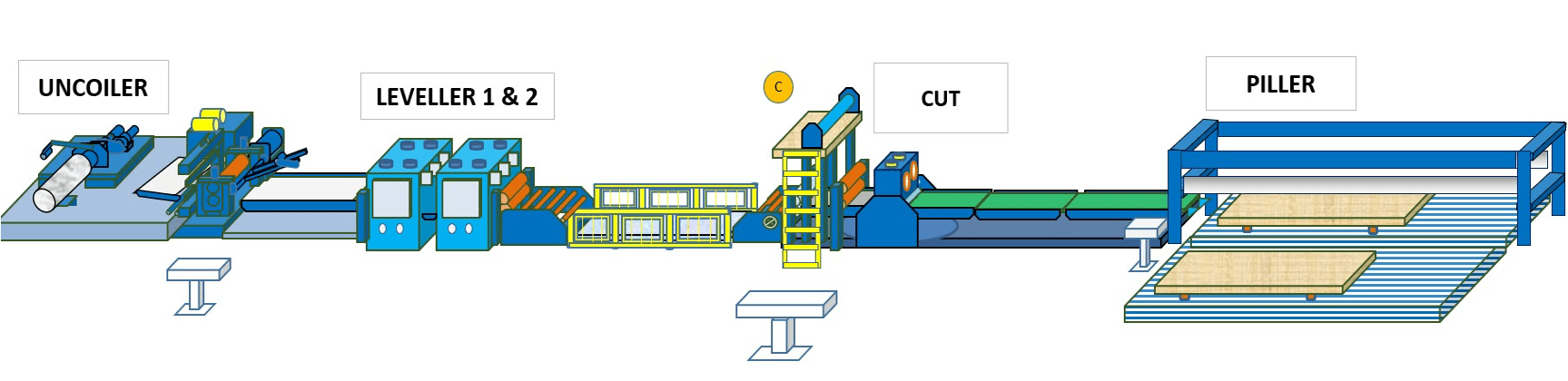

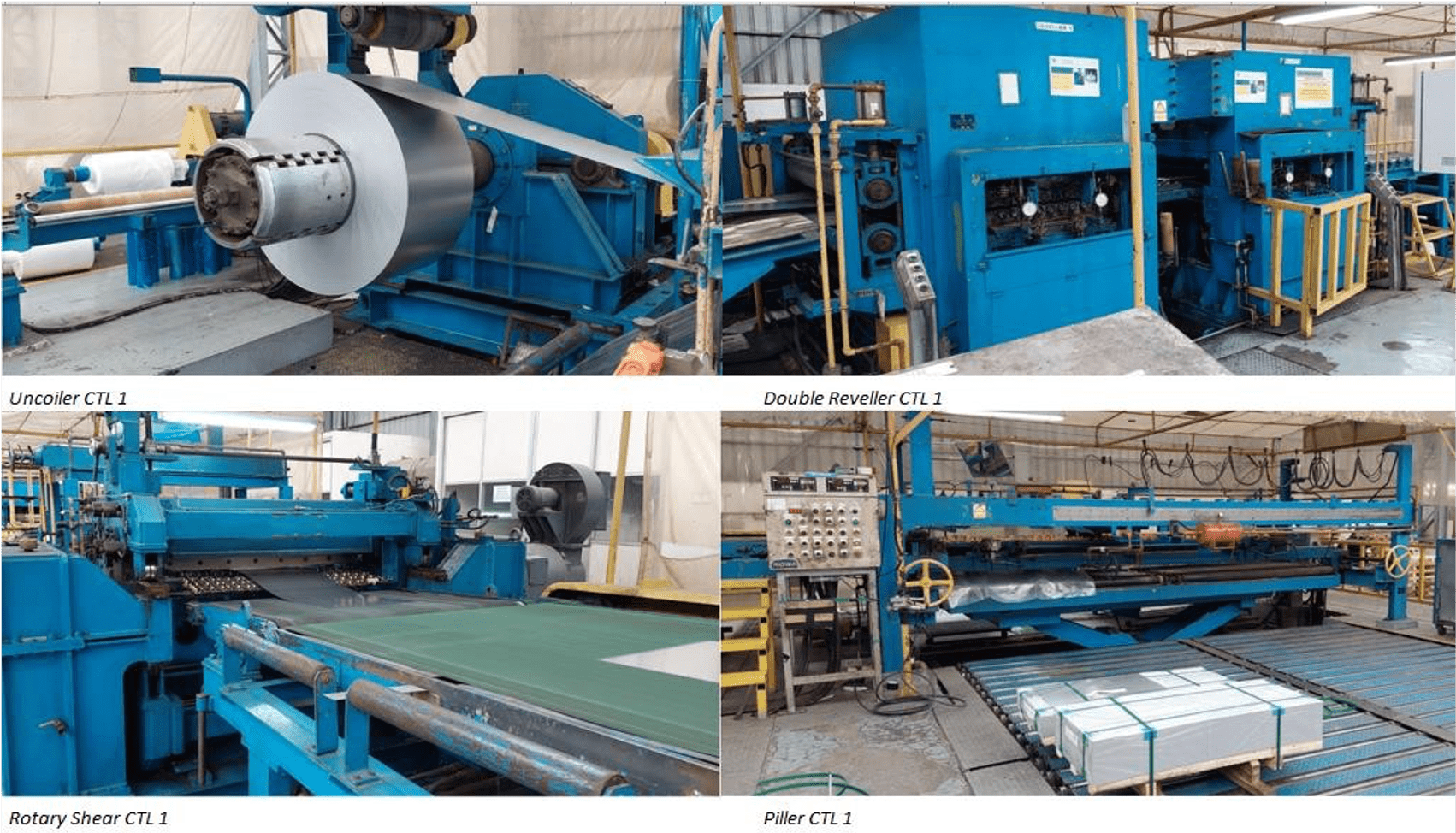

CUT TO LENGTH 1 MACHINE

Cut to Length 1 Machine
CUT TO LENGTH 1 MACHINE
MACHINE Type of machine CTL1
Manufactur KOWA (Japan)
Start Operation Jan-97
Type Of Material Stainless steel, aluminium, galvanis
Tensile Strength Max. 400 N/mm2
Line Speed 60 M/min
MOTHER COIL Thickness mm 0.30 - 3.20
Width mm 300 - 1300
Length mm Coil
Weight MT 15 (Max)
ID mm 508, 610 (rubber sleeve)
OD mm 600 - 1800
PRODUCT Thickness mm 0.30 - 3.20
Width mm 300 - 1300
Length mm 400-4500
Weight MT 3
ID mm -
OD mm -
Cut to Length 1 Machine

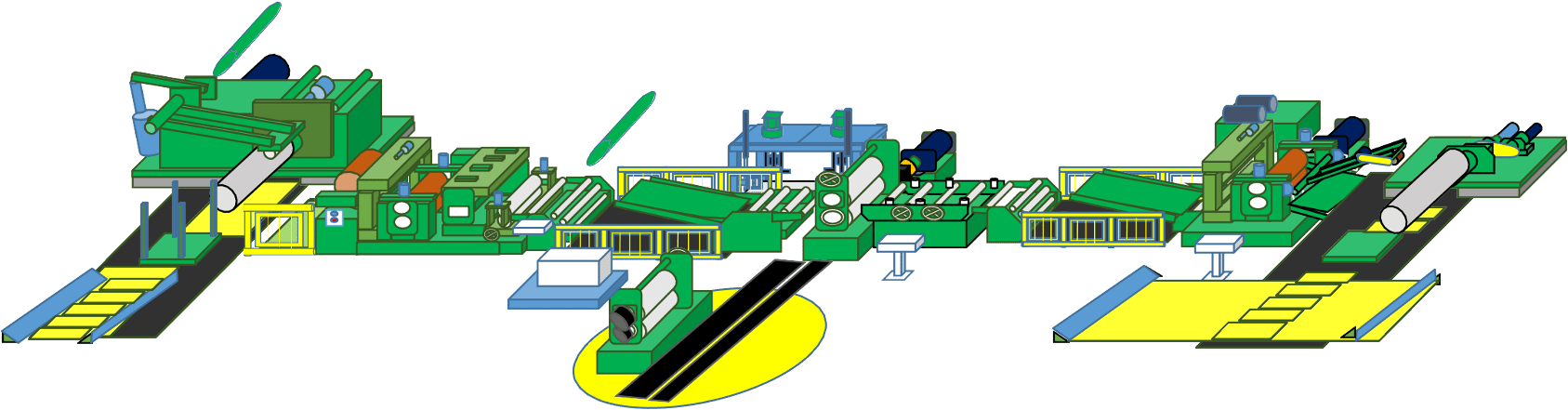

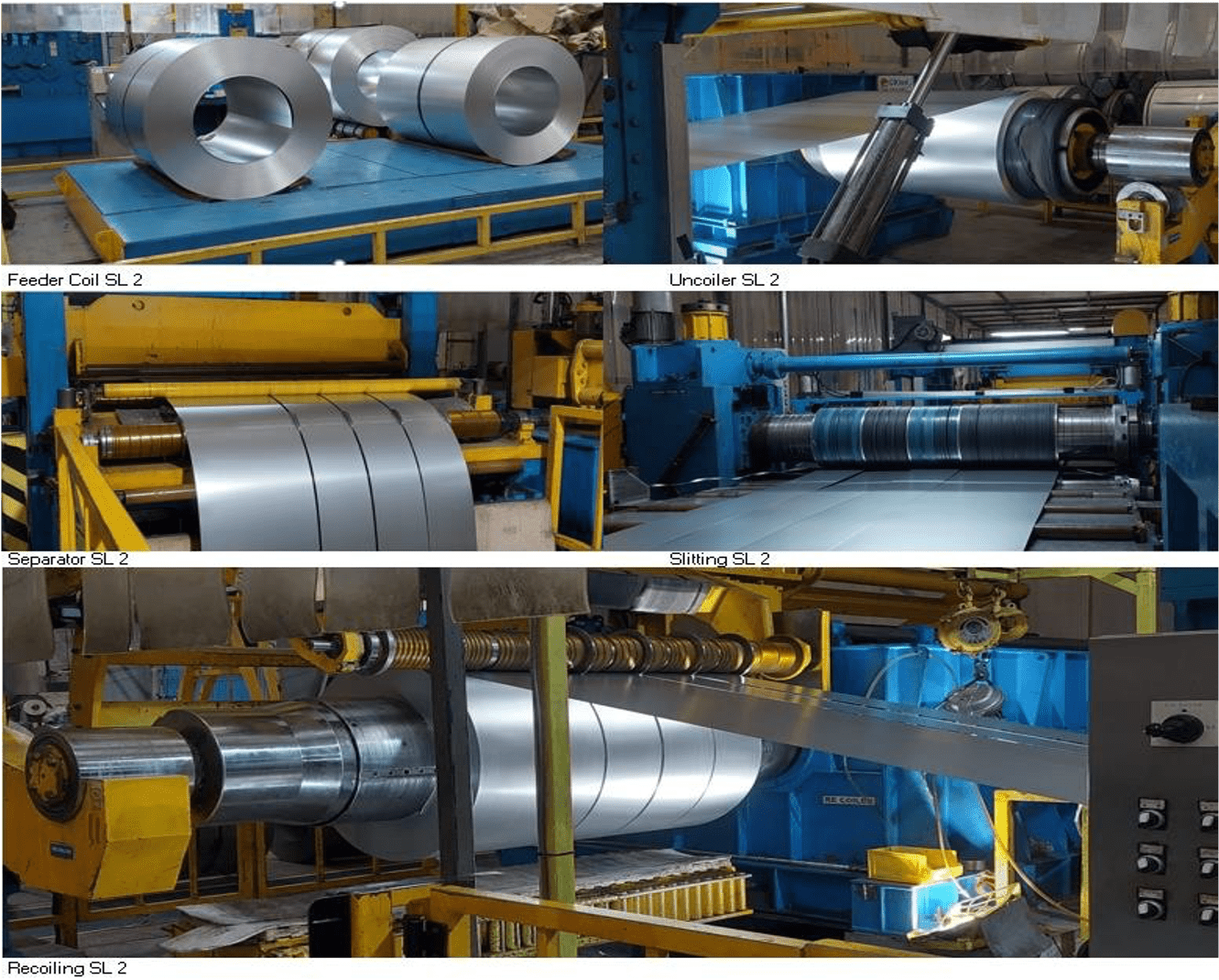

SLITTING 2 MACHINE

Slitting 2 Machine
SLITTING 2 MACHINE
MACHINE Type of machine SL2
Manufactur GIO (Taiwan)
Start Operation Mar-15
Type Of Material Carbon steel HR, CR
Tensile Strength Max. 980 N/mm2
Line Speed 100 - 200 M/min
MOTHER COIL Thickness mm 0.50 - 6.00
Width mm 300 - 1650
Length mm Coil
Weight MT 18 (Max)
ID mm 508, 610 (rubber sleeve)
OD mm 800 - 2100
PRODUCT Thickness mm 0.50 - 6.00
Width mm 30 - 1650
Length mm coil
Weight MT 18 (max)
ID mm 508
OD mm 2100
Slitting 2 Machine

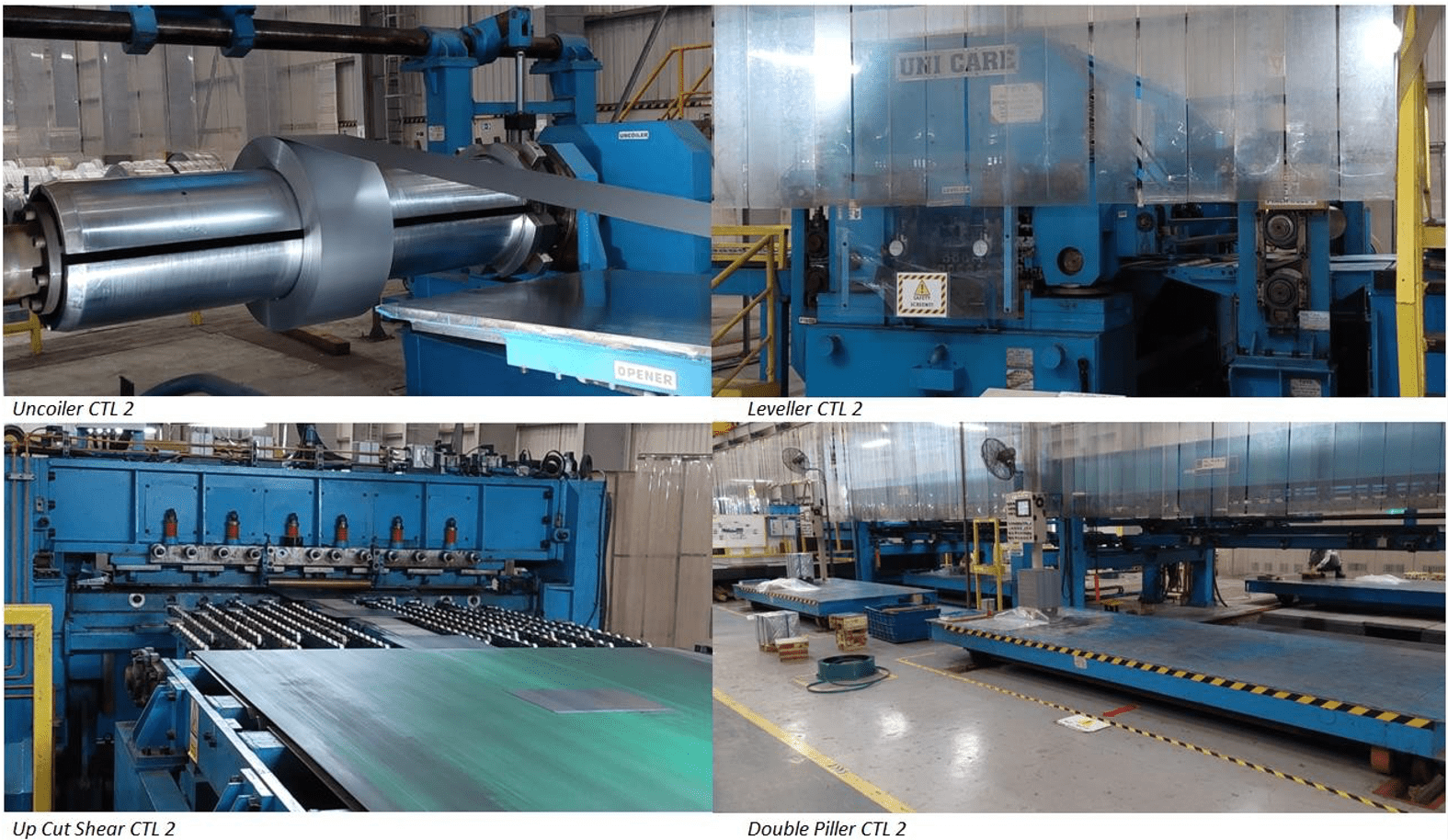

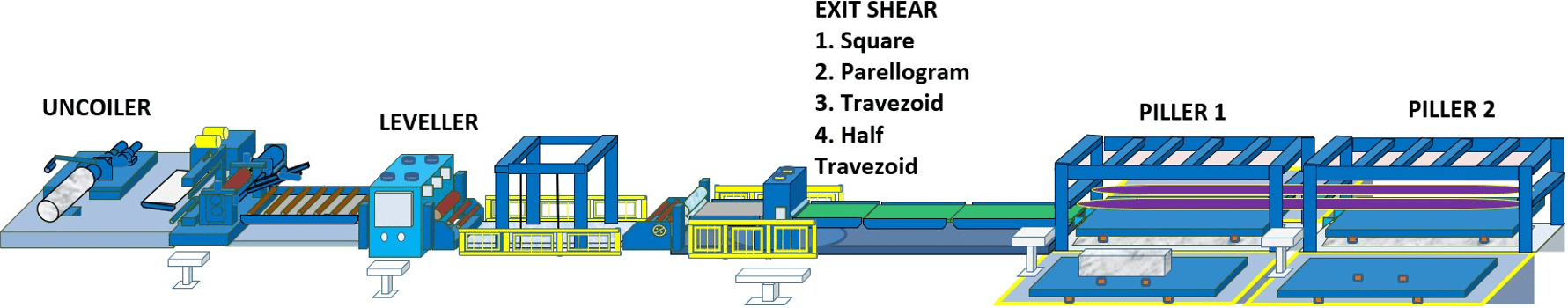

CUT TO LENGTH 2 MACHINE

Cut to Length 2 Machine
CUT TO LENGTH 2 MACHINE
MACHINE Type of machine CTL2
Manufactur TOTO (Japan)
Start Operation Apr-15
Type Of Material Carbon steel HR, CR
Tensile Strength Max. 590 N/mm2
Line Speed 80 M/min
MOTHER COIL Thickness mm 0.40 - 6.00
Width mm 400 - 1650
Length mm Coil
Weight MT 18 (Max)
ID mm 508, 610 (rubber sleeve)
OD mm 800 - 2100
PRODUCT Thickness mm 0.40 - 3.20
Width mm 400 - 1650
Length mm 400 - 4300
Weight MT 3
ID mm -
OD mm -

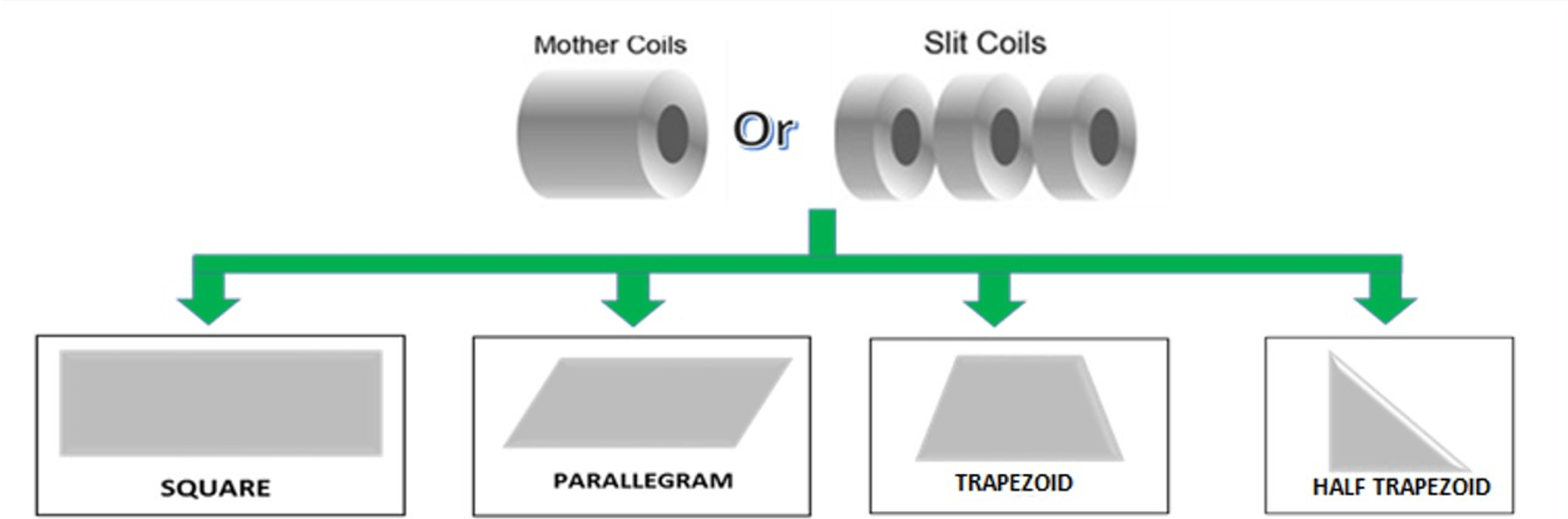

Trapezoid Process

Cut to Length 2 Machine
Cut to Length 2 Machine

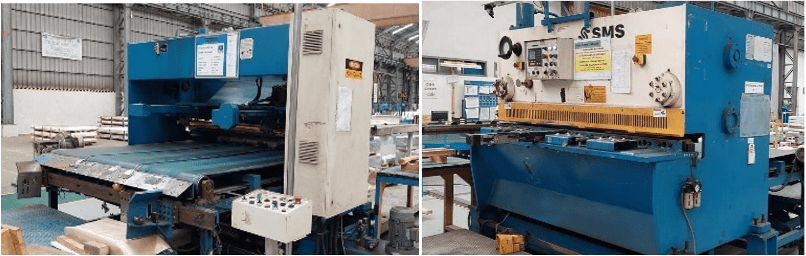

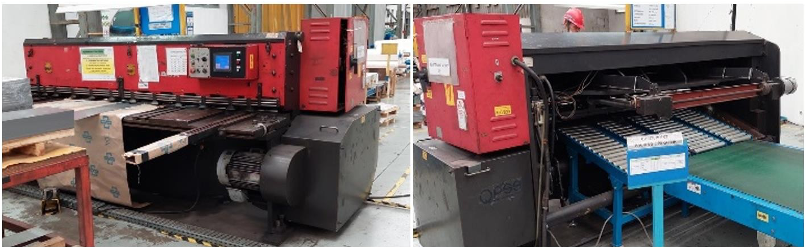

DOWN SHEARING 1 & 2 MACHINE

Down Sharing 1 & 2 Macine

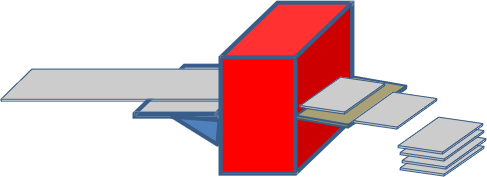

DOWN SHEARING 1 MACHINE
MACHINE Type of machine DS 1
Manufactur Japan (AMADA)
MATERIAL Type of material Stainless steel, galvanize,
carbon steel
Tensile Length Max. 400 N/mm2
MOTHER SHEET Thickness mm 0.30 - 6.00
Width mm 100 - 2300
PRODUCT Thickness mm 0.30 - 6.00
Width mm 100 - 2300
Length mm 50 - 1000
Down Sharing 1 & 2 Macine
Down Sharing 1 & 2 Macine

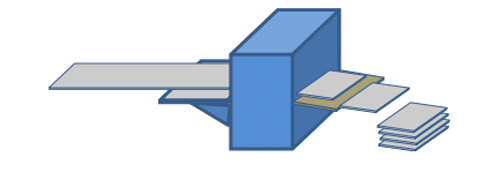

DOWN SHEARING 2 MACHINE
MACHINE Type of machine DS 2
Manufactur Taiwan (OTANO)
MATERIAL Type of material Carbon steel HR, CR,
galvanize
Tensile Length Max. 590 N/mm2
MOTHER SHEET Thickness mm 0.30 - 4.00
Width mm 100 - 2000
PRODUCT Thickness mm 0.30 - 4.00
Width mm 100 - 2000
Length mm 50 - 1000
Down Sharing 1 & 2 Macine
